Model:

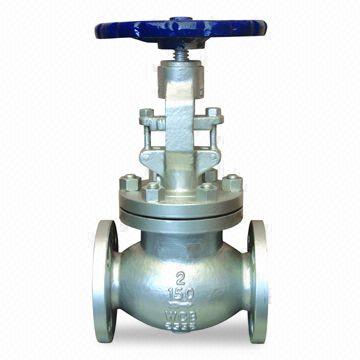

Cast steel Globe Valves, 900LB.
Size: 2-36 Inch (50-900mm).
Brief description:
Series CSGLV-4 are used to cut or connect the pipe media under nominal pressure Class 900lb, working temperature -29 to 800 degrees in industries including oil, chemistry, pharmaceutical, fertilizer, and power industry. Body materials are carbon steel, alloy steel, stainless steel.
Basic design standards:
Basic design: BS 1873, ANSI B16.34.
Face to face: ANSI B16.10.
Flanges: up to 24-inch ANSI B16.5 from 26-inch MSS SP44, ANSI B16.47.
Butt-weld ends: ANSI B16.25.
Testing: API 598.
Features:
Outside screw & yoke.
Bolted bonnet.
Screw seat ring up to 6-inch.
Welded seat ring from 8-inch.
Available with gear operator.
Special features according to customer’s requirements.
