CF8M Ball Valve, 1/2IN-4IN, SS 316 Ball & Stem, Flanged

Key Specifications / Features

Model No.: CV 17 BV 39 Hits: 59

China CF8M Ball Valve Factory Supplies CF8M Ball Valve: 1/2IN-4IN, Stainless Steel 316 Ball & Stem, Flanged Connection, SS304 Lever, R.P.T.F.E Seat.

Request a quote Share

Tags: Stainless Steel, Ball Valve, 1/2 Inch, Flanged Ends, CF8M, RPTFE Seat, SS304 Lever,

Previous: Stainless Steel Ball Valve, 1/2-8 Inch, R-PTFE Seat
Next: Marine Aluminium Bronze Ball Valve, 1/2IN-10IN, PTFE Seat

Detail Information

Products Name: Stainless Steel Ball Valve.
Size: 1/2 Inch to 4 Inch.
Connection: Flanged.
Operation: Lever, Pneumatic, Electric or Hydraulic Actuator.
Body Material: CF8M.
Ball & Stem: SS 316.
Seats: R.P.T.F.E.
Lever: SS 304.

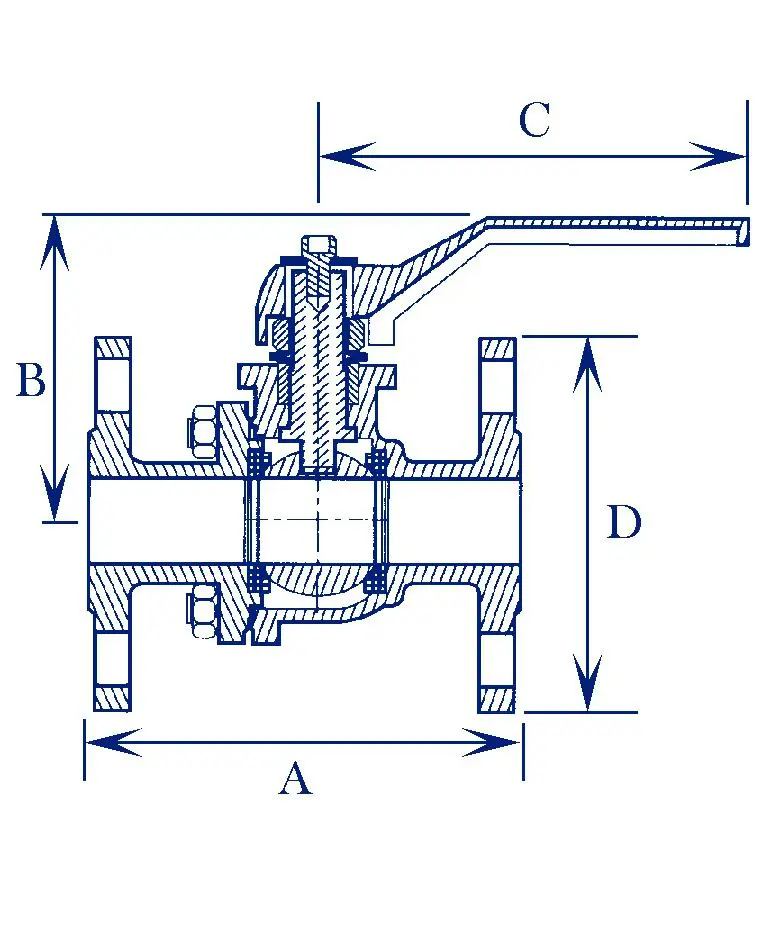

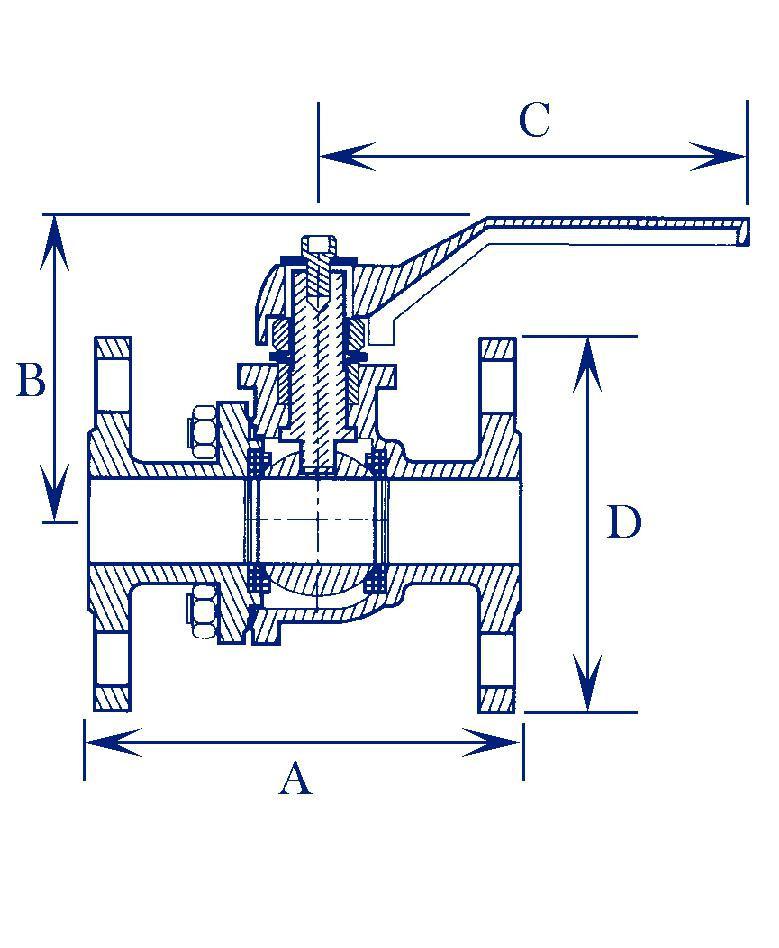

SIZE	DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100
A	108	117	127	140	165	178	191	203	229
B	80	80	90	102	110	120	140	150	180
C	130	130	165	165	205	205	300	340	420
D	89	98	108	117	127	152	178	190	229
