Stainless Steel Ball Valve, 1/2-8 Inch, R-PTFE Seat

Key Specifications / Features

Model No.: CV 17 BV 38 Hits: 82

China Stainless Steel Ball Valve Supplier Offers Stainless Steel Ball Valve: 1/2-8Inch, R-PTFE Seat, Flanged Connection, Viton O-Ring, FF DIN 3202 F4.

Request a quote Share

Tags: Stainless Steel, Ball Valve, Flanged Ends, CF8M, RPTFE Seat, DIN 3202 F4,

Previous: ASTM A182 F316 Ball Valves, DN50, PN250, A182 F51 Stem, RTJ Ends
Next: CF8M Ball Valve, 1/2IN-4IN, SS 316 Ball & Stem, Flanged

Detail Information

Product Name: Stainless Steel Ball Valve.
Size: 1/2 Inch to 8 Inch.
Connection: Flanged.
Face to Face: DIN 3202 F4, EN 558-1-27 Standards.
Operation: Lever, Pneumatic, etc.
Body Material: Stainless Steel (CF8M).
Ball & Stem: Stainless Steel (316).
Seats: R-PTFE (15%).
Lever: Stainless Steel (304).
Body Gasket & Stem Packing: PTFE.
O-Ring: Viton.
Fluids: Air, Oil, Steam, Water, etc.

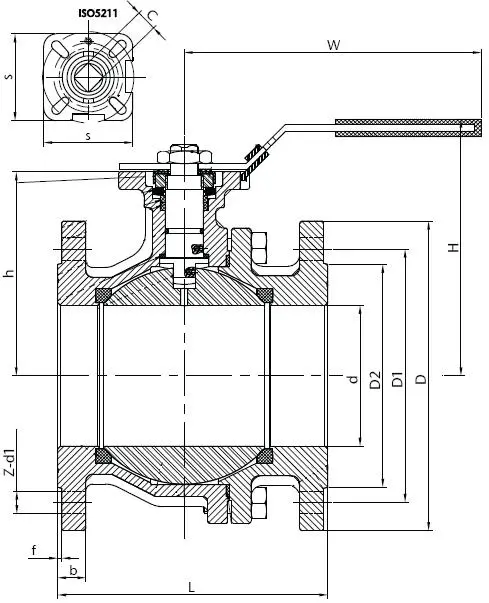

SIZE	DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100	DN125	DN150	DN200
d	15	20	25	32	40	50	65	80	100	125	150	200
L	115	120	125	130	140	150	170	180	190	325	350	400
D	95	105	115	140	150	165	185	200	220	250	285	340
D1	65	75	85	100	110	125	145	160	180	210	240	295
D2	45	58	68	78	88	102	122	138	158	188	212	268
b	16	18	18	18	18	20	18	20	20	22	22	24
f	2	2	2	2	3	3	3	3	3	3	3	3
H	82	87	90	100	105	125	142	155	168	228	246	310
W	120	120	160	160	200	200	255	255	300	600	600	800
C	9	9	11	11	14	14	17	17	17	22	22	27
ISO5211	F03/F04	F03/F04	F04/F05	F04/F05	F05/F07	F05/F07	F07/F10	F07/F10	F07/F10	F10/F12	F10/F12	F12/F14
Z-d1	4 x Ø14	4 x Ø14	4 x Ø14	4 x Ø18	4 x Ø18	4 x Ø18	4 x Ø18	8 x Ø18	8 x Ø18	8 x Ø18	12 x Ø22	12 x Ø22
h	48	53	58.5	71	76.5	85	100	112.5	125.5	155	172.5	217
s	42.6	42.6	50	50	64.5	64.5	93.6	93.6	93.6	114	114	131
Torque	5	8	10	14	20	30	48	75	110	200	300	400
Weight Kgs	2.91	3.38	3.73	4.95	6.1	8.9	12.8	18.9	26.6	48.43	68	118.17

Stainless Steel Ball Valve, 1/2-8 Inch, R-PTFE Seat
